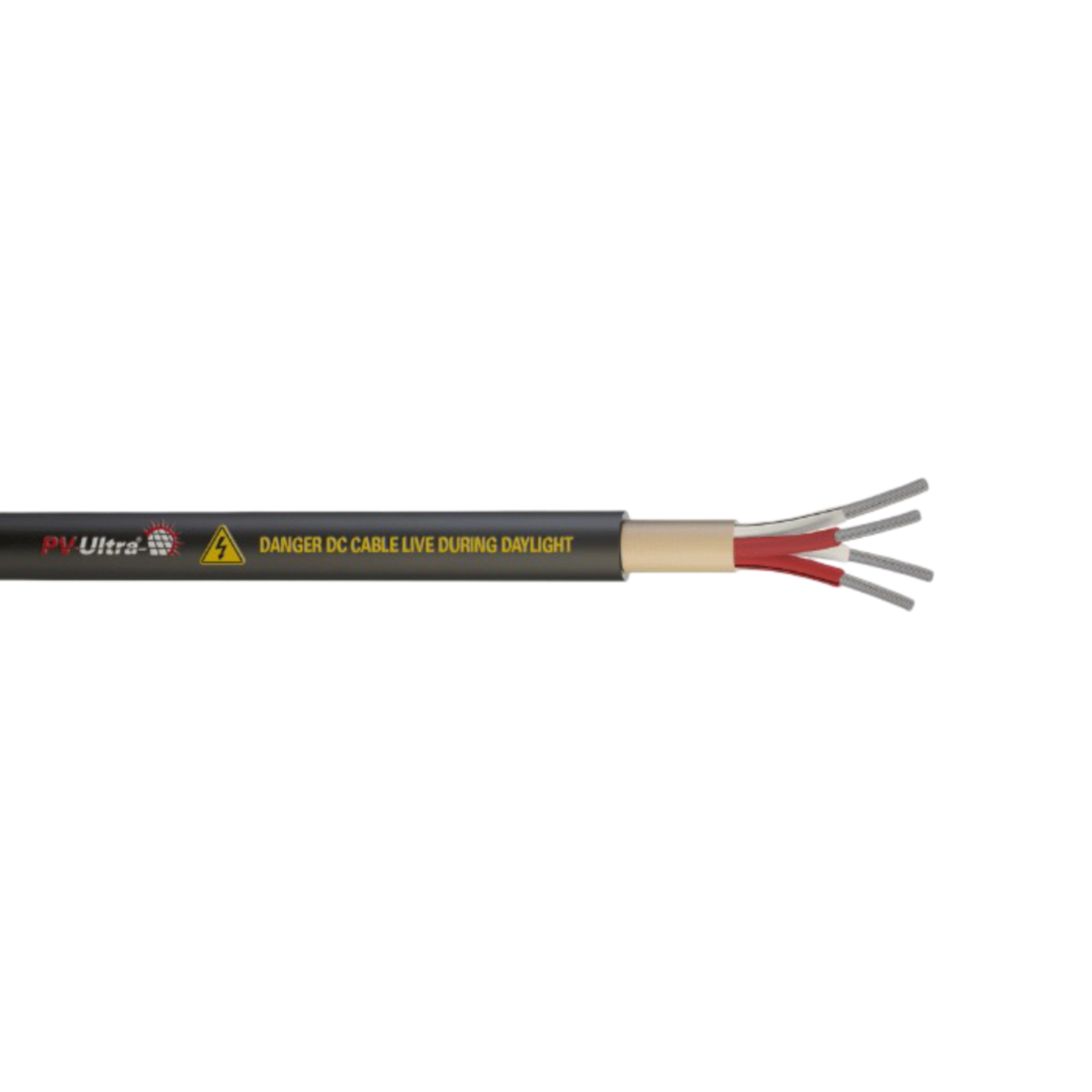

PV-ULTRA 4 CORE SWA

PV Ultra is a multicore DC solution that previously was solved by a multicore armoured cable. These multicore armoured cables are no longer recommended for use on the DC side of the installation. PV Ultra can now serve as a direct replacement allowing for a compliant multicore solution. The double insulated conductors are particularly suitable for use at the direct current (d.c.) side of the photovoltaic system, with a nominal d.c. voltage of 1.5kV between conductor and between conductor and earth. Due to the double insulation these cables are suitable to be used with Class II equipment (meeting the requirement of BS7671 Clause 712.412.101 which states that the electrical equipment up to the DC connection of the PV inverter shall be Class II or equivalent insulation) The double insulated conductors are enclosed in a CarbonTek® bedding, to give even more electrical protection against the steel wire armour (where applicable), with a final outer sheathing of SolarTek® PVC being applied to all variants of the cable (steel wire armoured or not)

Download Datasheet Contact Sales

Certifications & Standards

Certification Logo Certification Logo Certification Logo Certification Logo
PV-ULTRA 4 CORE SWA PV-ULTRA 4 CORE SWA

Quick Specifications

Group Code
PV-ULTRA 4C SWA
ETIM Class
N/A
Supplier
N/A
ID
8118106
Conductor
Tinned Annealed Copper Class 5 Flexible
Insulation
Double insulated cross-linked and fulfilling the requirements
Sheath
PVC UV resistant SolarTek
Min Operating Temperature
-15°C
Max Operating Temperature
90°C
Min Bending Radius
8 x diameter
Core Colours
Red and White, Red and White
Current Carrying Capacity
44A, 57A, 93A

Available Variations

Name SKU Bullet1 Bullet2 Bullet3 Bullet4 Number of conductors Colour Core Colours Details
PV-ULTRA4C4.0SWA PV-ULTRA4C4.0SWA Manufactured in the UK Manufactured with 100% renewable energy Uses materials and manufacturing techniques designed to make the electricians life easier BASEC Approved 4 Black Red and White, Red and White View
PV-ULTRA4C6.0SWA PV-ULTRA4C6.0SWA Manufactured in the UK Manufactured with 100% renewable energy Uses materials and manufacturing techniques designed to make the electricians life easier BASEC Approved 4 Black Red and White, Red and White View
PV-ULTRA4c710SWA PV-ULTRA4c710SWA Manufactured in the UK Manufactured with 100% renewable energy Uses materials and manufacturing techniques designed to make the electricians life easier BASEC Approved 4 Black Red and White, Red and White View
