309-Y ORDINARY DUTY FLEX

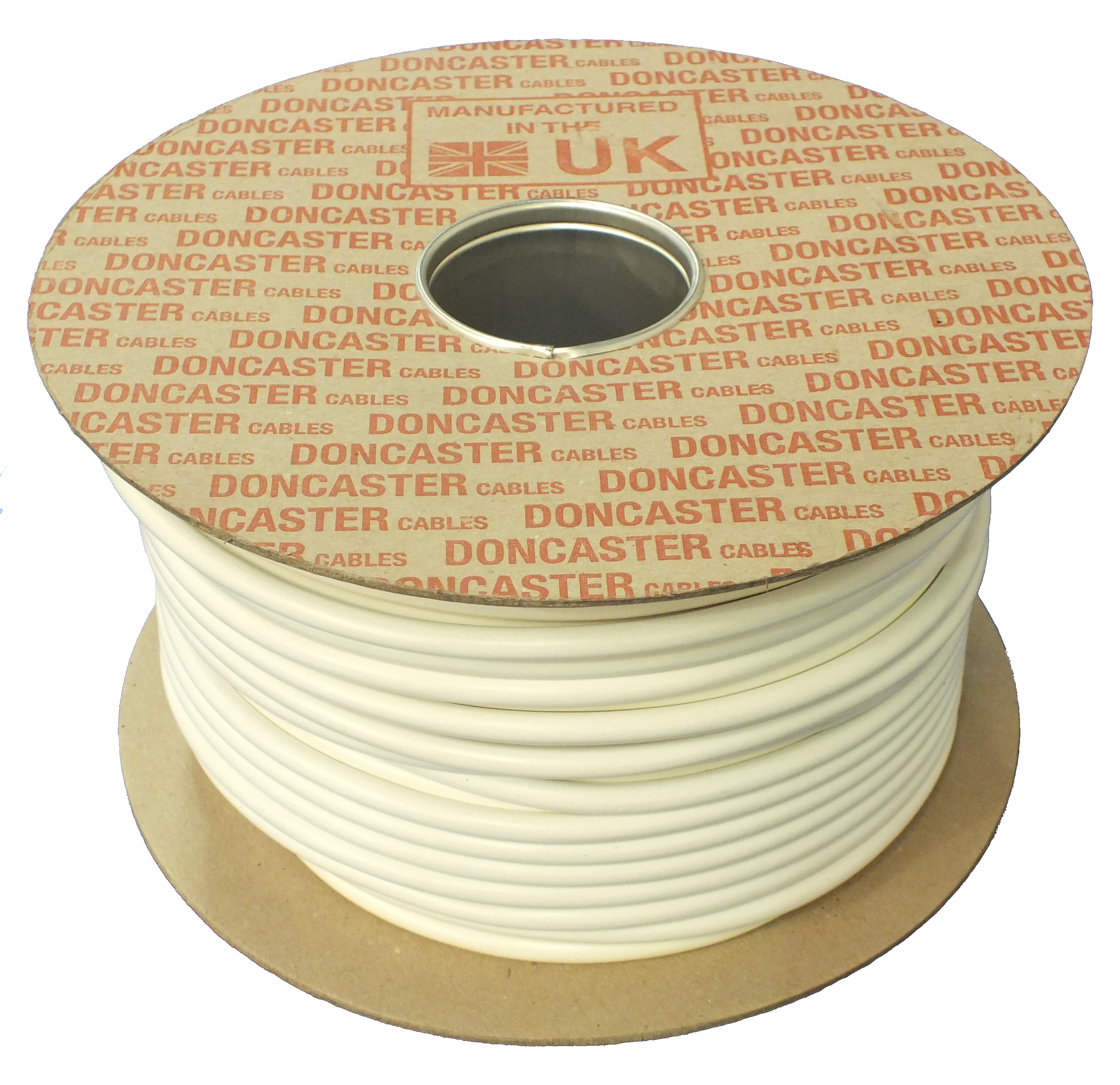

3094Y 1.0 WHITE 50 MTR RLS
Heat resisting ordinary duty flexible cords are used where the risk of mechanical damage and mechanical stresses is normal, i.e. when cables are subject to low mechanical stresses in the areas of application, and the risk of mechanical damage is low, as is the case to be expected in the normal use of small to medium size equipment in domestic and commercial as well as in light industrial premises. Examples of appliances that use heat resisting ordinary duty flexible cords are portable tools, immersion heaters, washing machines, cookers and refrigerators; especially in higher temperature zones.
SKU:
3094Y1.0W050
Reference:
10536595
Product Group:
309-Y
Supplier:
Doncaster Cables
Certifications & Standards
Quick Facts
SKU
3094Y1.0W050
Reference
10536595
Product Group
309-Y
Specifications
31
Technical Specifications
Weight
103.8
Unit
1000
Number of conductors
4
Conductor Size
1
Construction
Annealed Flexible Copper Conductor / Heat Resisting PVC Insulated / Heat Resisting PVC Sheathed
Standard
BS EN 50525-2-11:2011
Table / Clause
Clause 5.2, Table B.2
Conductor
Plain Annealed Copper Class 5 Flexible to BS EN 60228
Insulation
PVC Type TI3 to BS EN 50363-3
Sheathing
PVC Type TM3 to BS EN 50363-4-1
Voltage Rating
300/500V
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
90°C
Minimum Bending Radius
6 x diameter
Colour
White
Reel Dimensions (mm)
225x225x150
Core Colours
Green/Yellow, Blue, Brown, and Black
Current Ratings
For current ratings refer to table 4F3A of BS7671 IET Wiring Regulations.
Nominal Stranding of Conductor (mm)
30/0.25
Nominal Radial Thickness of Insulation (mm)
0.6
Nominal Radial Thickness of Sheath (mm)
0.9
Overall Diameter Lower Limit (mm)
7.1
Overall Diameter Upper Limit (mm)
9
Approximate Weight (kg/km)
110
Cable Types
HEAT RESISTING PVC FLEXIBLE
Meterage of each Component
50 Metres
Conductor Class to BS EN 60228
Class 5
Bullet1
Manufactured in the UK
Bullet2
Manufactured with 100% renewable energy
Bullet3
Uses materials and manufacturing techniques designed to make the electricians life easier
Bullet4
BASEC Approved
