3182 TRS

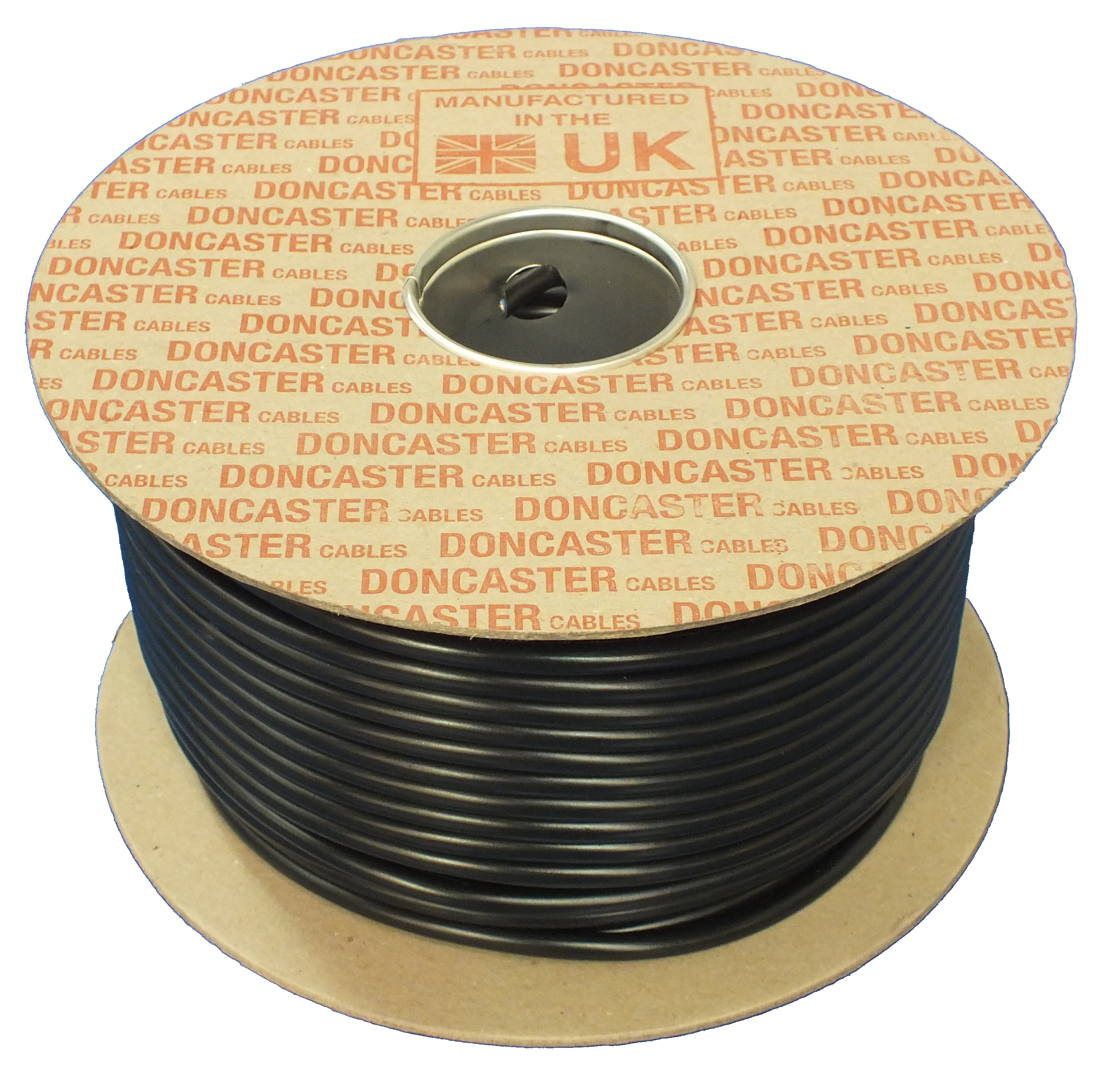

3183 1.5 TRS 100 MTR RLS
Ordinary duty rubber flexible cords are used where the risk of mechanical damage and mechanical stresses is normal, i.e. when cables are subject to low mechanical stresses in the areas of application, and the risk of mechanical damage is low, as is the case to be expected in the normal use of small to medium size equipment in domestic and commercial as well as in light industrial premises. Examples of appliances that use ordinary duty rubber flexible cords include vacuum cleaners, kitchen equipment, small electrical welding machines and portable hand tools.
SKU:
31831.51
Reference:
10535782
Product Group:
318-TRS
Supplier:
Doncaster Cables
Certifications & Standards
Quick Facts
SKU
31831.51
Reference
10535782
Product Group
318-TRS
Specifications
17
Technical Specifications
Weight
135
Unit
1000
Number of conductors
3
Conductor Size
1.5
Construction
Annealed Flexible Copper Conductor / (VR) Tough Rubber Insulated / Tough Rubber Sheathed
Standard
BS EN 50525-2-21:2011
Table / Clause
Clause 4.1
Conductor
Annealed Copper Class 5 Flexible to BS EN 60228
Insulation
Cross Linked Elastomeric Type EI4 to BS EN 50363-1
Sheathing
Cross Linked Elastomeric Type EM2 to BS EN 50363-2-1
Voltage Rating
300/500V
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
60°C
Minimum Bending Radius
8 x diameter
Reel Dimensions (mm)
300x300x150
Core Colours
Green/Yellow, Blue, and Brown
Current Ratings
For current ratings refer to table 4F3 of BS7671 IET Wiring Regulations.
