ORDINARY DUTY FLEX LSNH REELS

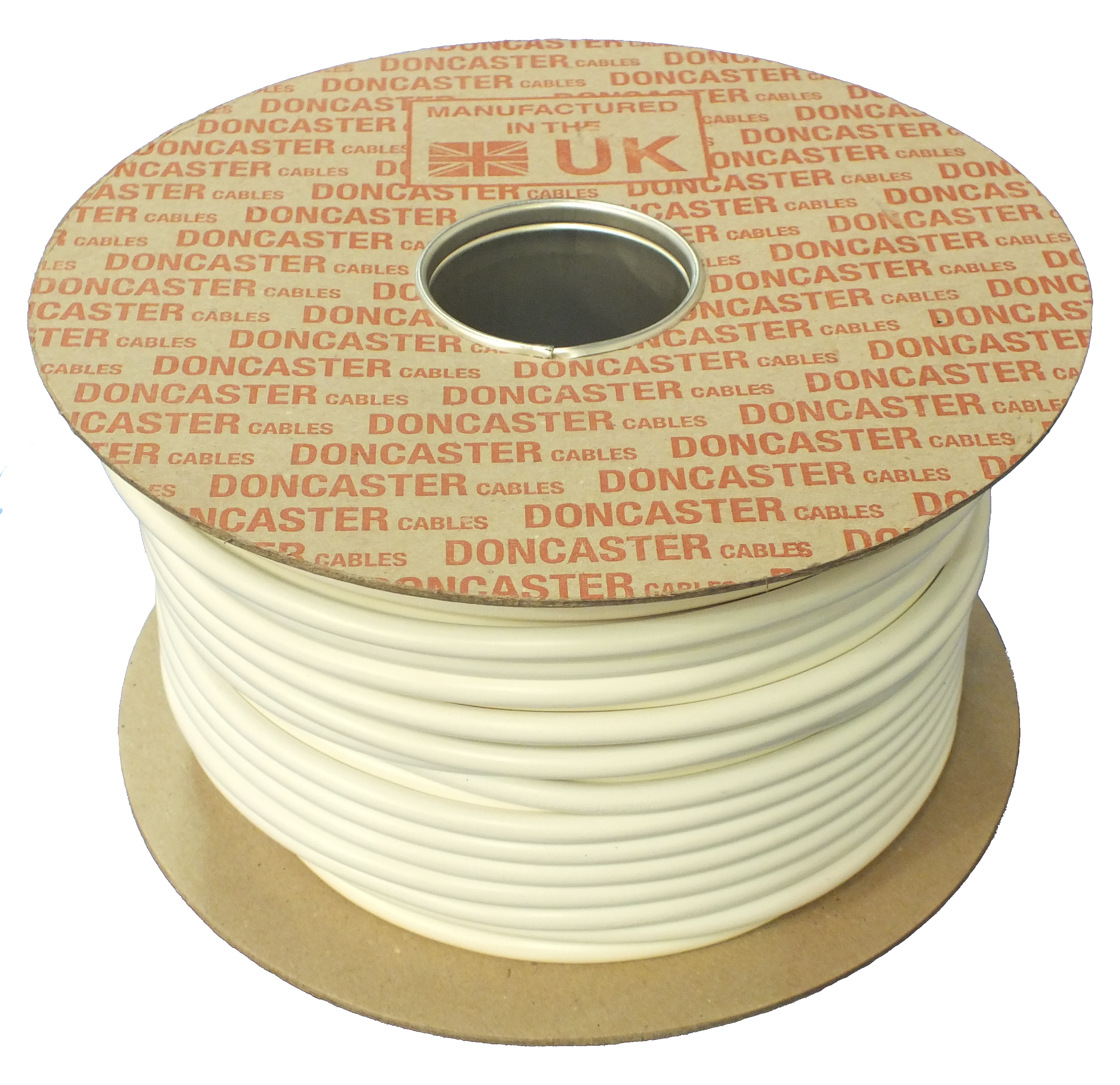

3183B 0.75 WHITE LSNH FLEX 100 MTR RLS
These cables are designed to be used in installations where smoke and acid gas emission would pose a major hazard in the event of a fire. Ordinary duty flexible cords are used where the risk of mechanical damage and mechanical stresses is normal, i.e. when cables are subject to low mechanical stresses in the areas of application, and the risk of mechanical damage is low, as is the case to be expected in the normal use of small to medium size equipment in domestic and commercial as well as in light industrial premises. Examples of appliances that use ordinary duty flexible cords include vacuum cleaners, toasters, washing machines, refrigerators, dryers and televisions.
SKU:
3183B0.75W100
Reference:
10537051
Product Group:
318-B
Supplier:
Doncaster Cables
Certifications & Standards
Quick Facts
SKU
3183B0.75W100
Reference
10537051
Product Group
318-B
Specifications
27
Technical Specifications
Weight
61.01
Unit
1000
Number of conductors
3
Conductor Size
0.75
Construction
Annealed Flexible Copper Conductor / LSNH Insulated / LSNH Sheathed
Standard
BS EN 50525-2-11:2011
Table / Clause
Clause 4.2, Table B.2
Conductor
Plain Annealed Copper Class 5 Flexible to BS EN 60228
Insulation
Low Smoke Non Halogen
Sheathing
Low Smoke Non Halogen
Voltage Rating
300/500V
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
70°C
Minimum Bending Radius
6 x diameter
Colour
White
Reel Dimensions (mm)
250x250x150
Core Colours
Green/Yellow, Blue, and Brown
Current Ratings
For current ratings refer to table 4F3A of BS7671 IET Wiring Regulations.
Nominal Stranding of Conductor (mm)
24/0.2
Nominal Radial Thickness of Insulation (mm)
0.6
Nominal Radial Thickness of Sheath (mm)
0.8
Overall Diameter Lower Limit (mm)
6
Overall Diameter Upper Limit (mm)
7.6
Cable Types
LSNH INSULATED AND SHEATHED FLEXIBLE
Meterage of each Component
100 Metres
Conductor Class to BS EN 60228
Class 5
Bullet1
Tested and quality assured by Doncaster Cables
