318-TQ FLEXIBLE CORD

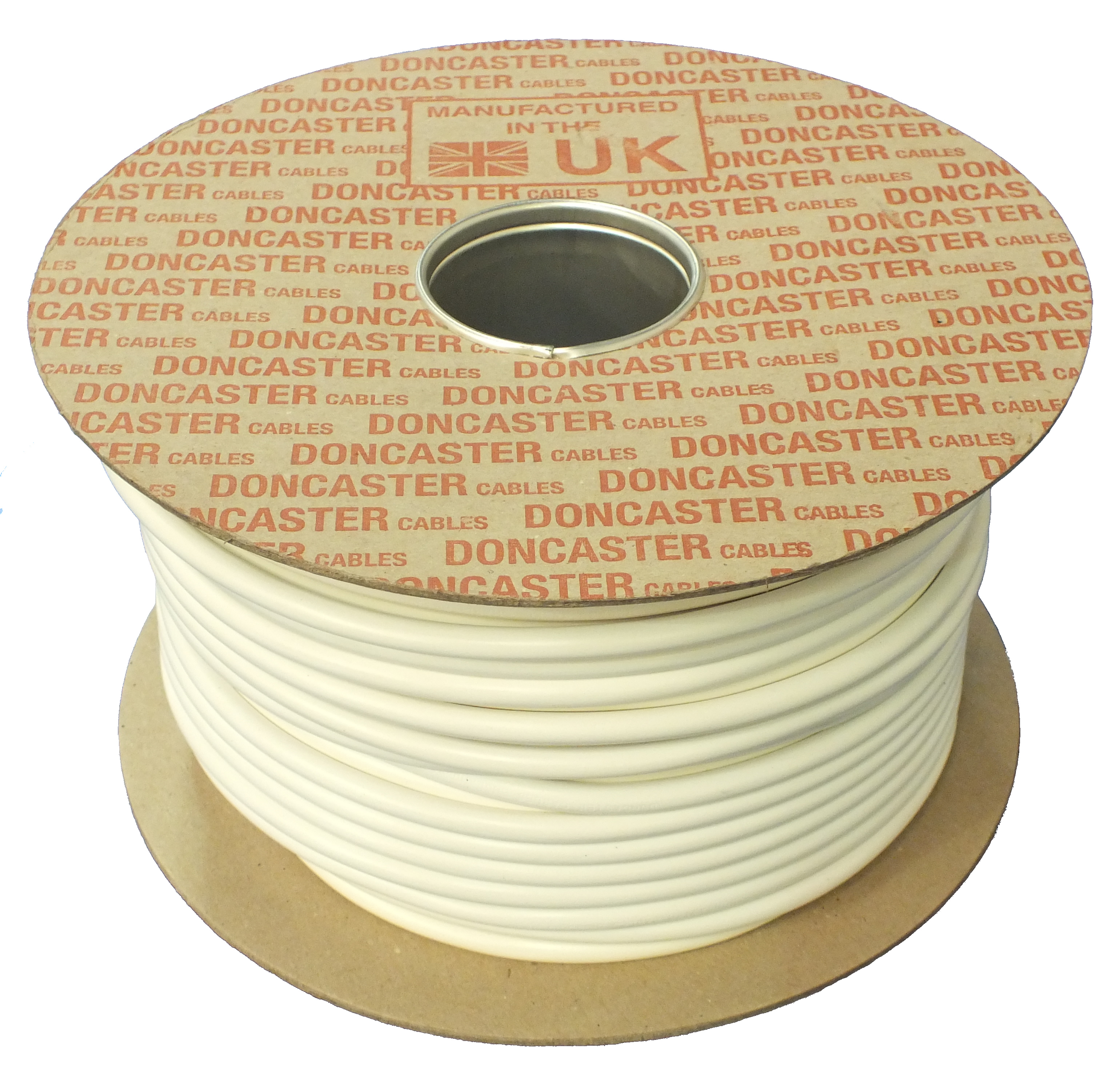

3183TQ 1.5 WHITE 50 MTR RLS
Heat Oil and Flame Resistant (HOFR) rubber flexible cords are used where the risk of mechanical damage and mechanical stresses is normal, i.e. when cables are subject to low mechanical stresses in the areas of application, and the risk of mechanical damage is low, as is the case to be expected in the normal use of small to medium size equipment in domestic and commercial as well as in light industrial premises. Examples of appliances that use HOFR rubber flexible cords include cooking appliances, soldering irons, toasters, water immersions heaters, small electronic welding equipment.
SKU:
3183TQ1.5W050
Reference:
10535475
Product Group:
318-TQ
Supplier:
Doncaster Cables
Certifications & Standards
Quick Facts
SKU
3183TQ1.5W050
Reference
10535475
Product Group
318-TQ
Specifications
29
Technical Specifications
Weight
135
Unit
1000
Number of conductors
3
Conductor Size
1.5
Construction
Annealed Flexible Copper Conductor / Ethylene Propylene Rubber (EPR) Insulated / ChloroSulphonated Propylene Rubber (CSP) Sheathed
Standard
BS EN 50525-2-21:2011
Table / Clause
Clause 6.3 & 6.4
Conductor
Annealed Copper Class 5 Flexible to BS EN 60228
Insulation
Cross Linked Elastomeric Type EI4 to BS EN 50363-1
Sheathing
Cross Linked Elastomeric Type EM7 to BS EN 50363-2-1
Voltage Rating
300/500V (H05) or 450/750V (H07)
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
90°C
Minimum Bending Radius
6 x diameter
Colour
White
Reel Dimensions (mm)
225x225x150
Core Colours
Green/Yellow, Blue, and Brown
Current Ratings
For current ratings refer to table 4F3A of BS7671 IET Wiring Regulations.
Nominal Stranding of Conductor (mm)
30/0.25
Nominal Radial Thickness of Insulation (mm)
0.8
Nominal Radial Thickness of Sheath (mm)
1
Overall Diameter Lower Limit (mm)
8
Overall Diameter Upper Limit (mm)
10.4
Approximate Weight (kg/km)
135
Cable Types
EPR INSULATED / CSP SHEATHED FLEXIBLE
Meterage of each Component
50 Metres
Conductor Class to BS EN 60228
Class 5
Bullet1
<HAR> THIRD PARTY ACCREDITED
Bullet2
Tested and quality assured by Doncaster Cables
