318-A ORDINARY DUTY ARCTIC FLEX

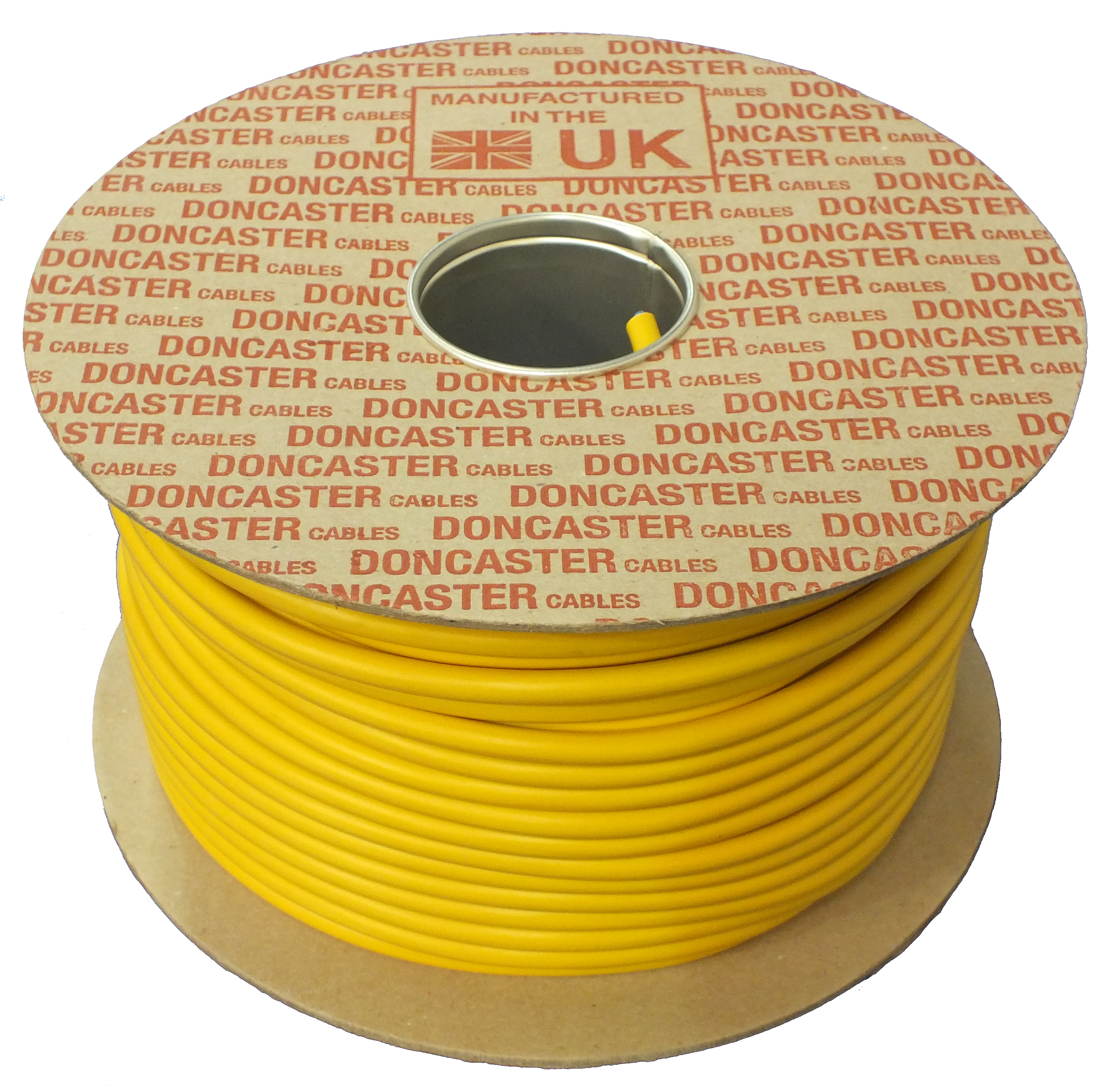

3183Y 4.0 ACRTIC YELLOW 100 MTR RLS
These Arctic Grade flexible cords are manufactured with a low temperature PVC insulation and sheath. They are suitable for installation and handling at temperatures down to -25°C and are cold bend tested to -40°C. These cables are suitable for use on ELV systems (110V centre tapped) on building sites in the UK, for use with temporary traffic light systems when suitably protected, indoor use at low voltage (230V). These cables are not designed for outdoor use at voltages exceeding 110V. Yellow sheathed flexibles are intended for use on ELV and site services etc. Blue sheathed flexibles are for intended for use on temporary traffic lights etc.
SKU:
3183Y4.0AY100
Reference:
10535887
Product Group:
318-A
Supplier:
Doncaster Cables
Certifications & Standards
Quick Facts
SKU
3183Y4.0AY100
Reference
10535887
Product Group
318-A
Specifications
30
Technical Specifications
Weight
252.79
Unit
1000
Number of conductors
3
Conductor Size
4
Construction
Annealed Flexible Copper Conductor / PVC Insulated / PVC Sheathed
Standard
BS EN 50525-2-11:2011
Table / Clause
Clause 4.2, Table B.2
Conductor
Plain Annealed Copper Class 5 Flexible to BS EN 60228
Insulation
PVC Type TI2 to BS EN 50363-3
Sheathing
Low Temperature PVC Type 10 to BS 7655-4-2
Voltage Rating
300/500V
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
60°C
Minimum Bending Radius
6 x diameter
Colour
Arctic Yellow
Reel Dimensions (mm)
375x375x300
Core Colours
Green/Yellow, Blue, and Brown
Current Ratings
For current ratings refer to table 4F3A of BS7671 IET Wiring Regulations.
Nominal Stranding of Conductor (mm)
56/0.30
Nominal Radial Thickness of Insulation (mm)
0.8
Nominal Radial Thickness of Sheath (mm)
1.2
Overall Diameter Lower Limit (mm)
10.5
Overall Diameter Upper Limit (mm)
13.1
Approximate Weight (kg/km)
253
Cable Types
ARCTIC GRADE FLEXIBLE
Meterage of each Component
100 Metres
Conductor Class to BS EN 60228
Class 5
Bullet1
Manufactured in the UK
Bullet2
Manufactured with 100% renewable energy
Bullet3
Uses materials and manufacturing techniques designed to make the electricians life easier
