318-Y ORDINARY DUTY FLEX

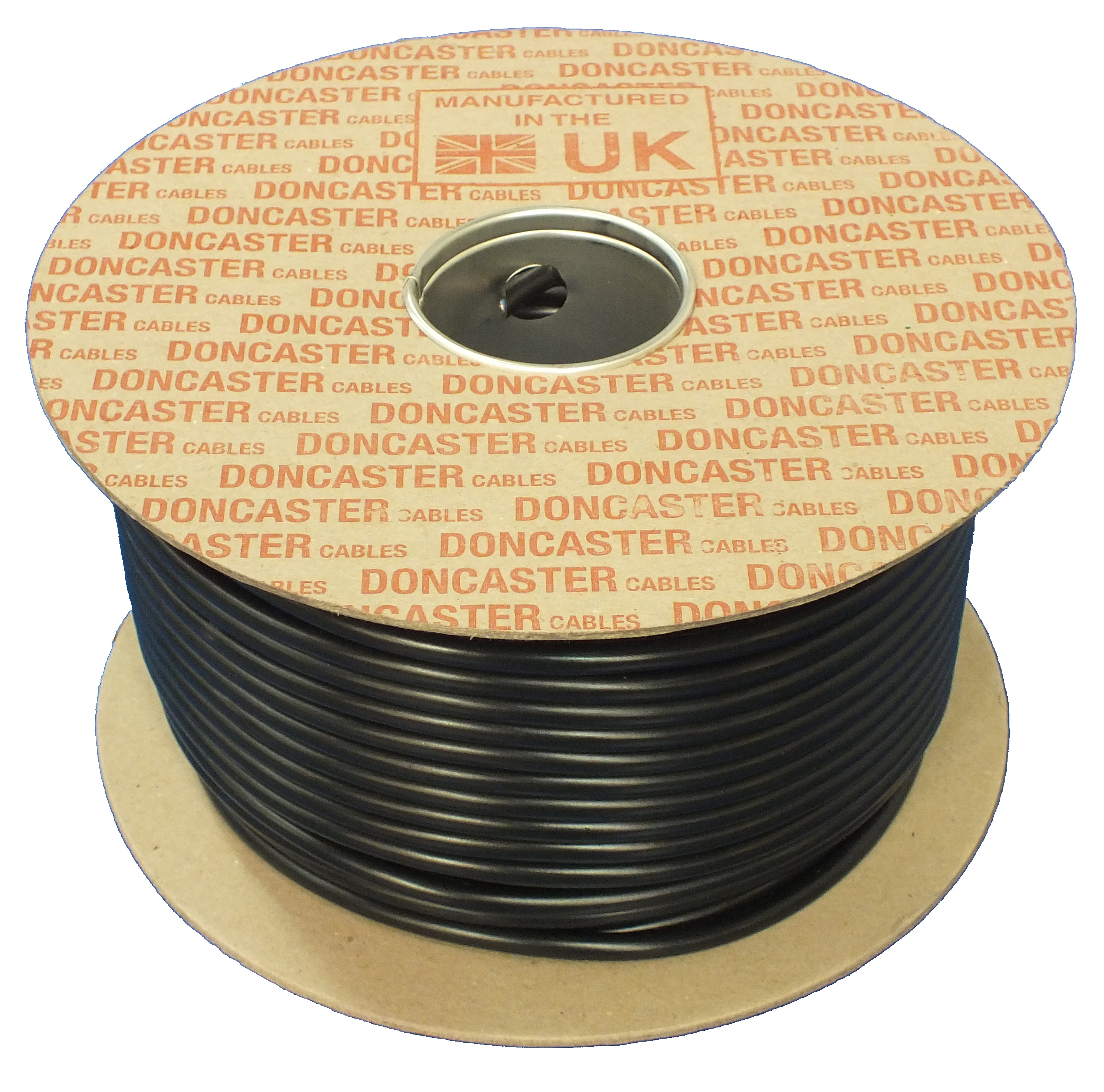

3183Y 4.0 BLACK 100 MTR RLS

Ordinary duty flexible cords are used where the risk of mechanical damage and mechanical stresses is normal, i.e. when cables are subject to low mechanical stresses in the areas of application, and the risk of mechanical damage is low, as is the case to be expected in the normal use of small to medium size equipment in domestic and commercial as well as in light industrial premises. Examples of appliances that use ordinary duty flexible cords include vacuum cleaners, toasters, washing machines, refrigerators, dryers and televisions.

SKU: 3183Y4.0B100
Reference: 10536408
Product Group: 318-Y
Supplier: Doncaster Cables
Contact Sales

Certifications & Standards

Certification Logo Certification Logo Certification Logo

Quick Facts

SKU
3183Y4.0B100
Reference
10536408
Product Group
318-Y
Specifications
31

Technical Specifications

Weight
252.79
Unit
1000
Number of conductors
3
Conductor Size
4
Construction
Annealed Flexible Copper Conductor / PVC Insulated / PVC Sheathed
Standard
BS EN 50525-2-11:2011
Table / Clause
Clause 4.2, Table B.2
Conductor
Plain Annealed Copper Class 5 Flexible to BS EN 60228
Insulation
PVC Type TI2 to BS EN 50363-3
Sheathing
PVC Type TM2 to BS EN 50363-4-1
Voltage Rating
300/500V
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
70°C
Minimum Bending Radius
6 x diameter
Colour
Black
Reel Dimensions (mm)
375x375x300
Core Colours
Green/Yellow, Blue, and Brown
Current Ratings
For current ratings refer to table 4F3A of BS7671 IET Wiring Regulations.
Nominal Stranding of Conductor (mm)
56/0.30
Nominal Radial Thickness of Insulation (mm)
0.8
Nominal Radial Thickness of Sheath (mm)
1.2
Overall Diameter Lower Limit (mm)
10.5
Overall Diameter Upper Limit (mm)
13.1
Approximate Weight (kg/km)
252
Cable Types
ORDINARY DUTY PVC FLEXIBLE
Meterage of each Component
100 Metres
Conductor Class to BS EN 60228
Class 5
Bullet1
Manufactured in the UK
Bullet2
Manufactured with 100% renewable energy
Bullet3
Uses materials and manufacturing techniques designed to make the electricians life easier
Bullet4
BASEC Approved
