6181Y SINGLE CORE PVC

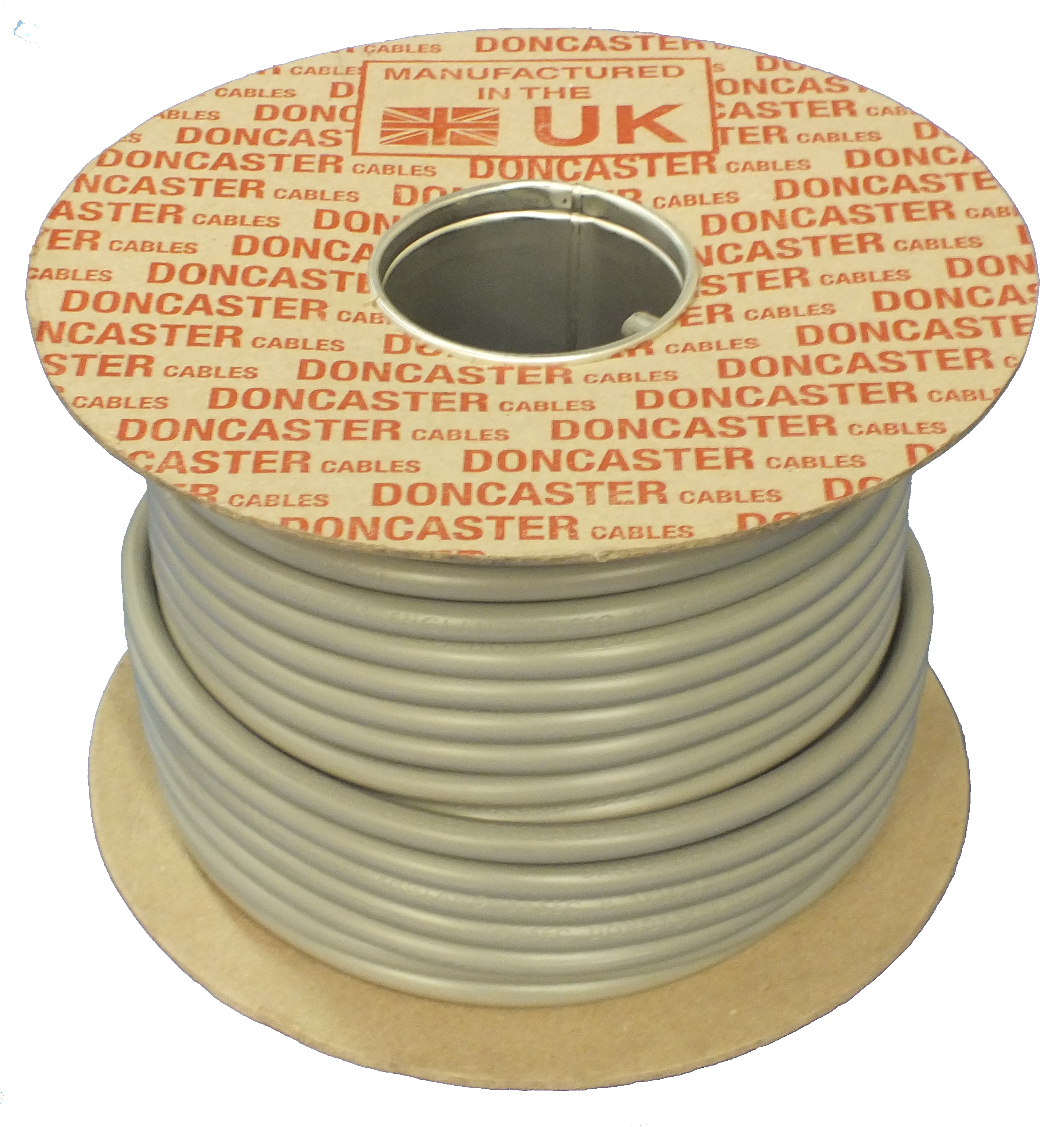

6181Y 16.0 BLUE/GREY
Designed for use in light industrial and domestic wiring. These cables are particularly suited for installation as meter tails and are intended for fixed installation in dry or damp premises. These cables can be installed in conduit, in cable trunking and in cable ducting, or where there is deemed little risk of mechanical damage these cables can be clipped direct, on cable tray, embedded or in free air. These cables are not intended to be laid underground.
SKU:
6181Y716BL/G
Reference:
10536047
Product Group:
6181Y
Supplier:
Doncaster Cables
Certifications & Standards
Quick Facts
SKU
6181Y716BL/G
Reference
10536047
Product Group
6181Y
Specifications
23
Technical Specifications
Weight
221.36
Unit
1000
Number of conductors
1
Conductor Size
16
Construction
Annealed Stranded Copper Conductor / PVC Insulated / PVC Sheathed.
Standard
BS 6004:2012
Table / Clause
Table 3
Conductor
Plain Annealed Copper Class 1 or 2 to BS EN 60228
Insulation
PVC Type TI1 to BS EN 50363-3
Sheathing
PVC Type 6 to BS7655-4.2
Voltage Rating
300/500V
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
70°C
Minimum Bending Radius
6 x diameter
Reel Dimensions (mm)
375x375x300
Core Colours
Blue or Brown
Current Ratings
For current ratings refer to table 4D1 of BS7671 IET Wiring Regulations
Nominal Stranding of Conductor (mm)
7/1.70
Nominal Radial Thickness of Insulation (mm)
1
Nominal Radial Thickness of Sheath (mm)
1
Overall Diameter Lower Limit (mm)
8.4
Overall Diameter Upper Limit (mm)
10.5
Approximate Weight (kg/km)
225
