6181Y SINGLE CORE PVC

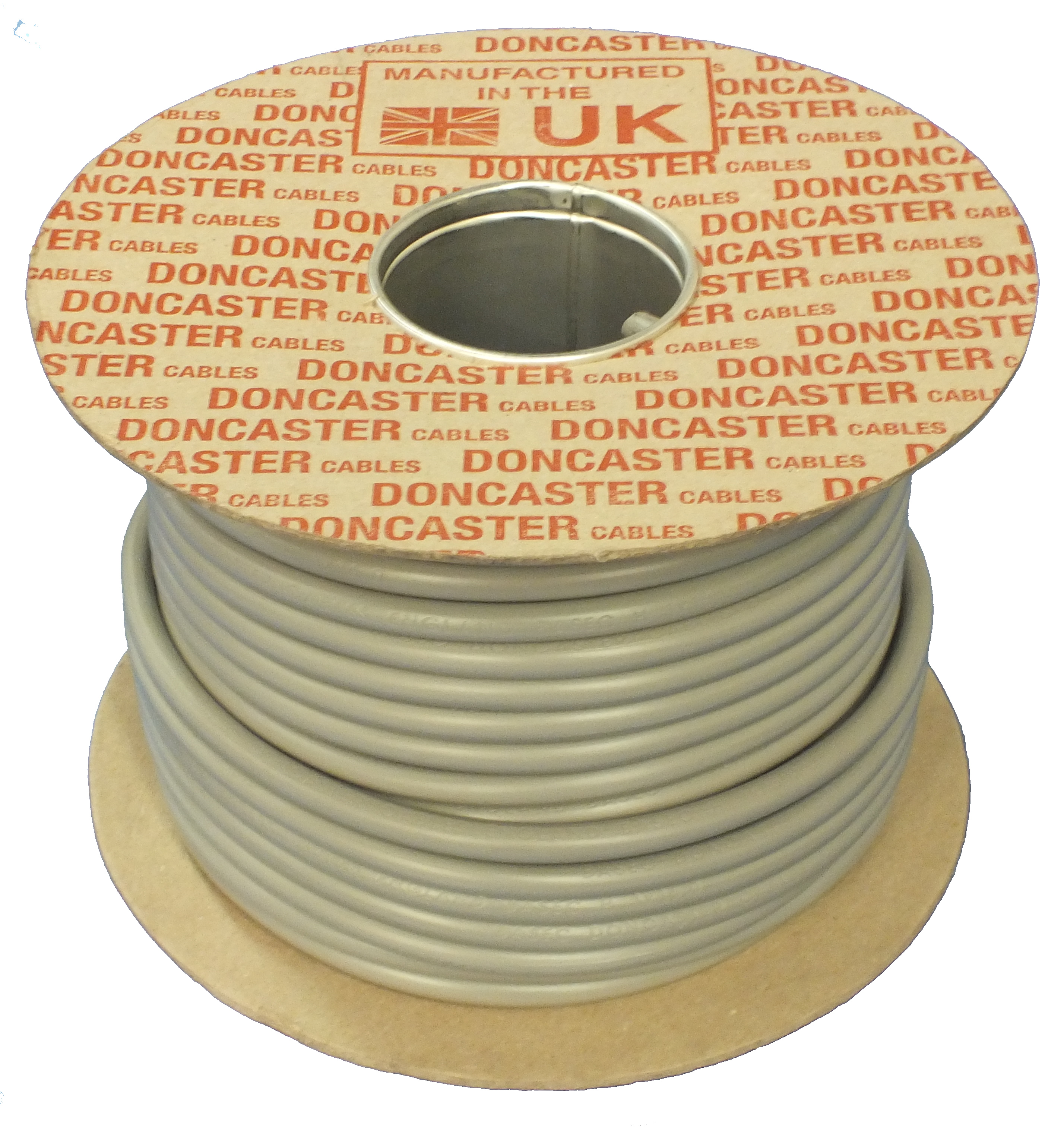

6181Y F 25.0 BLUE/BLUE 19 STRAND

Designed for use in light industrial and domestic wiring. These cables are particularly suited for installation as meter tails and are intended for fixed installation in dry or damp premises. These cables can be installed in conduit, in cable trunking and in cable ducting, or where there is deemed little risk of mechanical damage these cables can be clipped direct, on cable tray, embedded or in free air. These cables are not intended to be laid underground.

SKU: 6181YF725BL/BL
Reference: 10536012
Product Group: 6181Y
Supplier: Doncaster Cables
Contact Sales

Certifications & Standards

Certification Logo Certification Logo Certification Logo

Quick Facts

SKU
6181YF725BL/BL
Reference
10536012
Product Group
6181Y
Specifications
16

Technical Specifications

Weight
325.88
Unit
1000
Number of conductors
1
Conductor Size
25
Construction
Annealed Stranded Copper Conductor / PVC Insulated / PVC Sheathed.
Standard
BS 6004:2012
Table / Clause
Table 3
Conductor
Plain Annealed Copper Class 1 or 2 to BS EN 60228
Insulation
PVC Type TI1 to BS EN 50363-3
Sheathing
PVC Type 6 to BS7655-4.2
Voltage Rating
300/500V
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
70°C
Minimum Bending Radius
6 x diameter
Reel Dimensions (mm)
750x750x350
Core Colours
Blue or Brown
