6241Y PVC INSULATED, PVC SHEATHED CABLE REELS

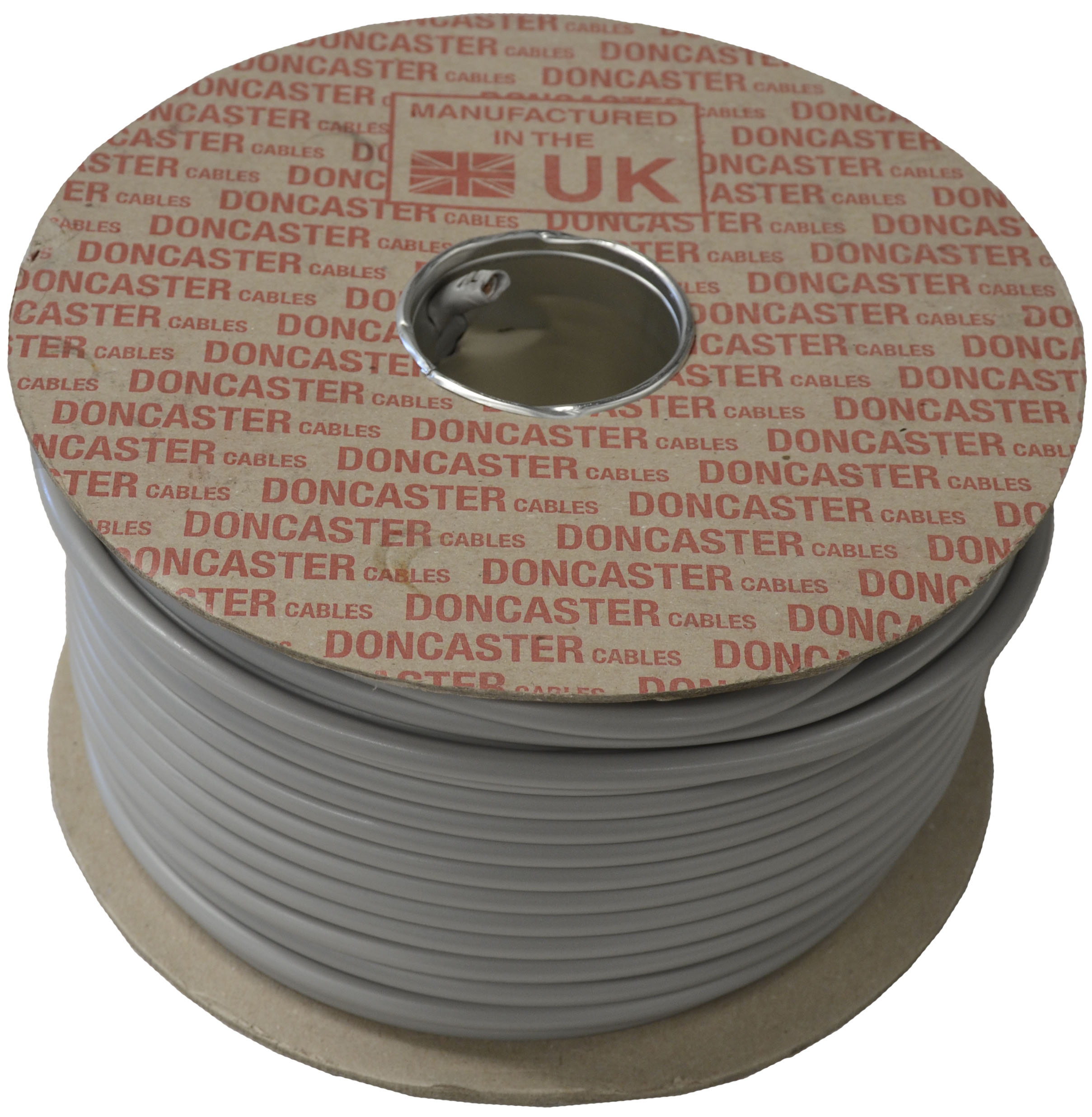

6241Y 1.0 BROWN/GREY 100 MTR RLS
Designed for use in light industrial and domestic wiring. These cables are intended for fixed installation in dry or damp premises. These cables can be installed in conduit, in cable trunking and in cable ducting or where there is deemed little risk of mechanical damage these cables can be clipped direct, on cable tray, embedded or in free air. These cables are not intended to be laid underground.
SKU:
6241Y1.0BR/G100
Reference:
10536505
Product Group:
6241Y
Supplier:
Doncaster Cables
Certifications & Standards
Quick Facts
SKU
6241Y1.0BR/G100
Reference
10536505
Product Group
6241Y
Specifications
23
Technical Specifications
Weight
41.71
Unit
1000
Number of conductors
1 + CPC
Conductor Size
1
Construction
Plain Annealed Copper Conductor / PVC Insulated / PVC Sheathed with bare Circuit Protective Conductor
Standard
BS 6004:2012
Table / Clause
Table 4
Conductor
Plain Annealed Copper Class 1 or 2 to BS EN 60228
Insulation
PVC Type TI1 to BS EN 50363-3
Sheathing
PVC Type 6 to BS7655-4.2
Voltage Rating
300/500V
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
70°C
Minimum Bending Radius
6 x diameter
Reel Dimensions (mm)
225x225x100
Core Colours
Blue or Brown
Current Ratings
For current ratings refer to table 4D5 of BS7671 IET Wiring Regulations.
Nominal Stranding of Conductor (mm)
1/1.13
Nominal Stranding of CPC (mm)
1/1.13 (1.0mm²)
Nominal Radial Thickness of Insulation (mm)
0.6
Nominal Radial Thickness of Sheath (mm)
0.9
Overall Diameter Lower Limit (mm)
4.0 x 5.1
Overall Diameter Upper Limit (mm)
5.2 x 6.4
