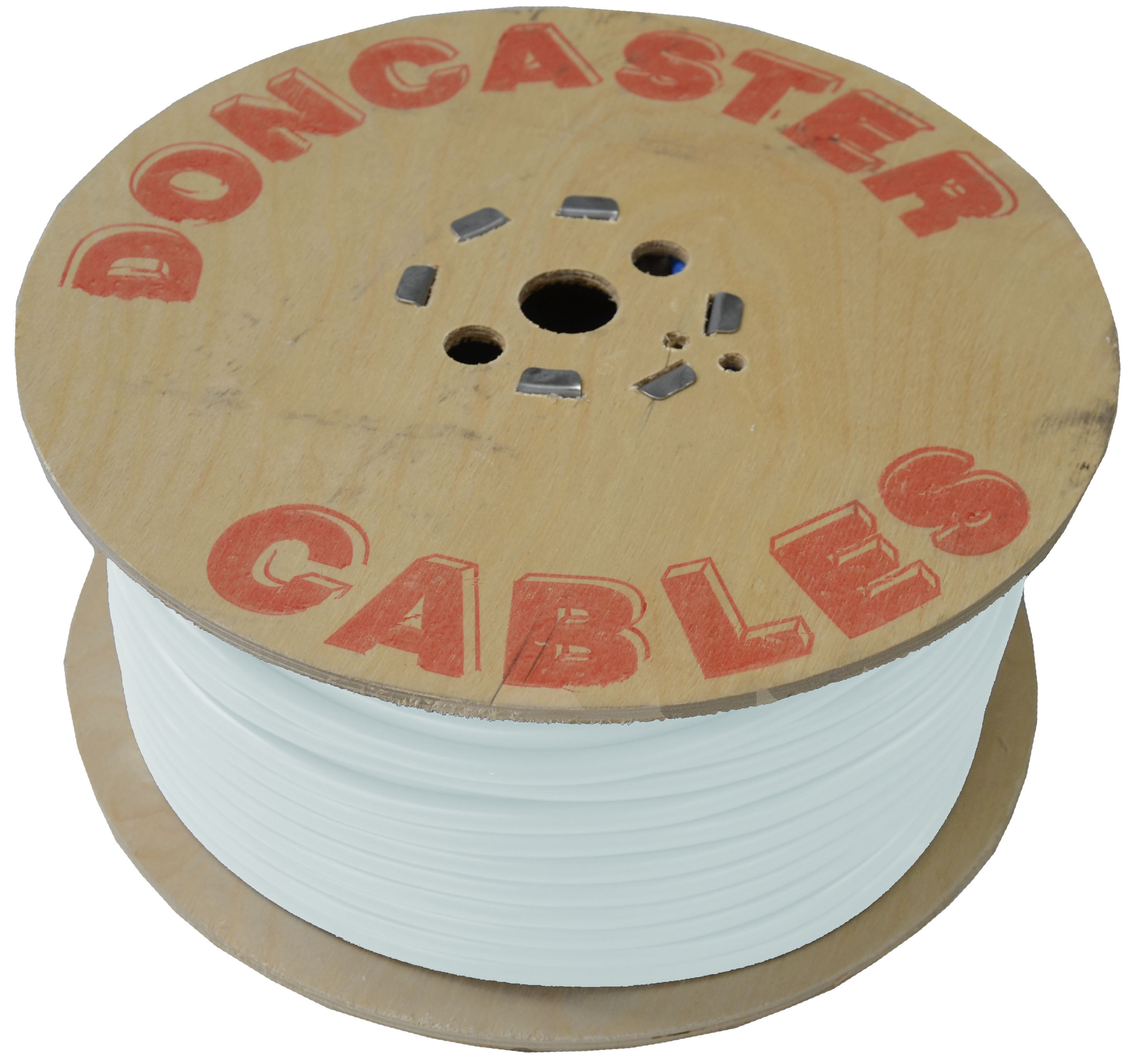

H MULTIUSE 3 CORE + EARTH 1.5 WHITE 100 MTR RLS

These cables are intended for installation in air (which includes installation in trunking or other closed systems), and in thin partitions and building voids when connected to a suitably selected protective device . Providing that the design and installation is carried out in accordance with BS7671 the cable can also be installed in ductwork, behind plaster, indoors and outdoors (where suitably protected) Key benefits to using Multiuse cable are that it is quick to install, lightweight, flexible and pliable all these features result in a pre-shielded cable which is easy to install and easily dressed. However, the main advantages of Multiuse cable can be found when being installed in floors, ceilings, thin walls and partitions.Multiuse can be used as a solution to meeting BS7671 clauses 522.6.100 to 522.6.103 - which relate to concealed cables at a depth of less than 50mm. Mulituse cable is manufactured to BS8436 - which means that it is a protected fixed wiring cable. The protection is given by an aluminium tape which is adhered to the outer sheath of the cable. This cable design provides a fail safe when used in an electrical circuit that is penetrated by nails or other sharp metalic objects.

SKU: HMU3C1.5W100
Reference: 10537362
Product Group: HMU
Supplier: Doncaster Cables
Contact Sales

Certifications & Standards

Certification Logo Certification Logo Certification Logo

Quick Facts

SKU
HMU3C1.5W100
Reference
10537362
Product Group
HMU
Specifications
30

Technical Specifications

Weight
129.94
Unit
1000
Number of conductors
3 + CPC
Conductor Size
1.5
Construction
Plain Annealed Copper Conductors / XLPE Insulated / Tinned Copper Circuit Protective Conductor / Laminated Aluminium Tape Screen / Thermoplastic Low Smoke Non-Halogen (LSNH) Sheath
Standard
BS 8436
Table / Clause
Table 1
Conductor
Plain Annealed Copper Class 1 or 2 to BS EN 60228
Insulation
Thermosetting XLPE Type GP8 to BS 7655-1.3
Sheathing
Thermoplastic LSNH Type LTS 3 to BS 7655-6.1
Voltage Rating
300/500V
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
70°C
Minimum Bending Radius
6 x diameter
Colour
White
Reel Dimensions (mm)
TBA
Core Colours
Brown, Black, and Grey
Current Ratings
For current ratings refer to table 4D1 of BS7671 IET Wiring Regulations.
Current Rating (In Air (A))
Table 4D1A of BS7671 IET Wiring Regulations Reference Method f
Nominal Stranding of Conductor (mm)
7/0.53
Nominal Stranding of CPC (mm)
7/0.53
Nominal Radial Thickness of Insulation (mm)
0.7
Nominal Radial Thickness of Sheath (mm)
0.9
Approximate Overall Diameter (mm)
9.6
Approximate Weight (kg/km)
130
Cable Types
SCREENED / PROTECTED FIXED WIRING CABLE
Meterage of each Component
100 Metres
Conductor Class to BS EN 60228
Class 2
Bullet1
Manufactured in the UK
Bullet2
BASEC Approved
