SY CONTROL FLEXIBLE

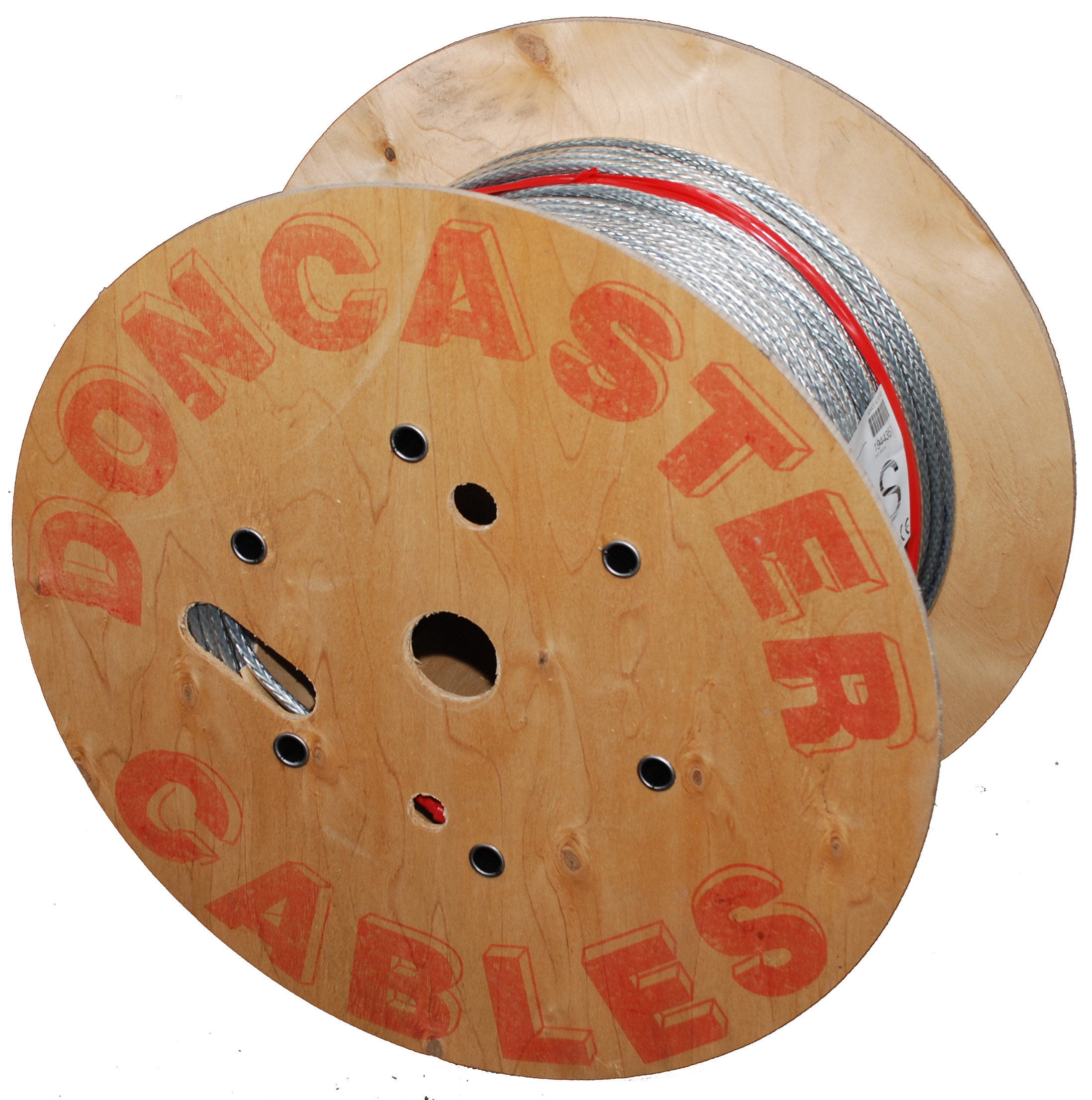

SY 4.0 4 CORE
The cable is designed to be used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. It is commonly used in a wide number of industries including building and construction, rail and transport infrastructures, transmission and automation and process control. This cable is also used by electricians in certain fixed installations where only light mechanical stress may occur. This cable can also be used outdoors (but should be protected); however, it is best suited to dry or moist conditions indoors.
SKU:
SY4.04C
Reference:
10536804
Product Group:
SY
Supplier:
Doncaster Cables
Certifications & Standards
Quick Facts
SKU
SY4.04C
Reference
10536804
Product Group
SY
Specifications
18
Technical Specifications
Weight
299.212
Unit
1000
Number of conductors
4
Conductor Size
4
Construction
Plain Annealed Flexible Copper Conductors / PVC Insulated / PVC Bedding / GSWB (Galvanised Steel Wire Braid) / PVC Sheathed
Standard
BS EN 50525-2-11:2011
Conductor
Plain Annealed Copper Class 5 to BS EN 60228
Insulation
PVC Type TI2 to BS EN 50363-3
Armouring
Galvanised Steel Wire Braid
Sheathing
PVC Type TM2 to B EN 50363-4-1
Voltage Rating
300/500V
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
70°C
Minimum Bending Radius
6 x diameter
Colour
BLACK ON WHITE
Core Colours
Green/Yellow, Blue, Brown, and Black
Galv. Steel Wire Armour
Fine Wire Galvanised Braid
Insulation Material
PVC
