AUXILIARY SWA LSNH

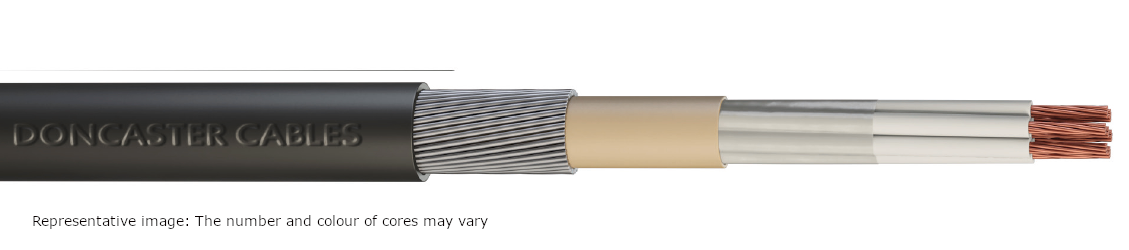

12CORE 2.5 STRANDED XLPE/LSNH/SWA/LSNH
These cables are designed to be used in installations where smoke and acid gas emission would pose a major hazard in the event of a fire. Auxiliary Steel Wire Armoured cables are predominantly used for industrial wiring and signalling. They are designed to be used in industrial areas, areas with higher risk of mechanical stress/damage, in and around buildings and other similar environments. These cables are designed to be installed in air, clipped to surface, on cable tray/ladder work, embedded in concrete and buried direct or in ducting underground.
SKU:
12C2.5LSNH
Reference:
10537520
Product Group:
LSNH SWA
Supplier:
Doncaster Cables
Certifications & Standards
.png)
Quick Facts
SKU
12C2.5LSNH
Reference
10537520
Product Group
LSNH SWA
Specifications
22
Technical Specifications
Weight
913.42
Unit
1000
Number of conductors
12
Conductor Size
2.5
Construction
Plain Annealed Copper Conductor / XLPE Insulated / LSNH Bedded / Galvanised Steel Wire Armour / LSNH Sheathed. 600/1000V
Standard
BS 6724
Table / Clause
Table 18
Conductor
Plain Annealed Copper Class 2 Stranded to BSEN 60228
Insulation
Thermosetting XLPE Type GP8 to BS 7655-1.3
Armouring
Yes
Sheathing
LSNH Type LTS1 to BS 7655-6.1
Voltage Rating
600/1000V
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
90°C
Minimum Bending Radius
8 x diameter
Core Colours
White, Numbered Black
Current Ratings
For current ratings refer to table 4E4A of BS7671 IET Wiring Regulations.
Nominal Stranding of Conductor (mm)
7/0.67
Nominal Radial Thickness of Insulation (mm)
0.7
Nominal Radial Thickness of Bedding (mm)
0.8
Approximate Weight (kg/km)
1080
Recommended Gland Size
25
