2192Y and 218-Y LIGHT DUTY FLEX

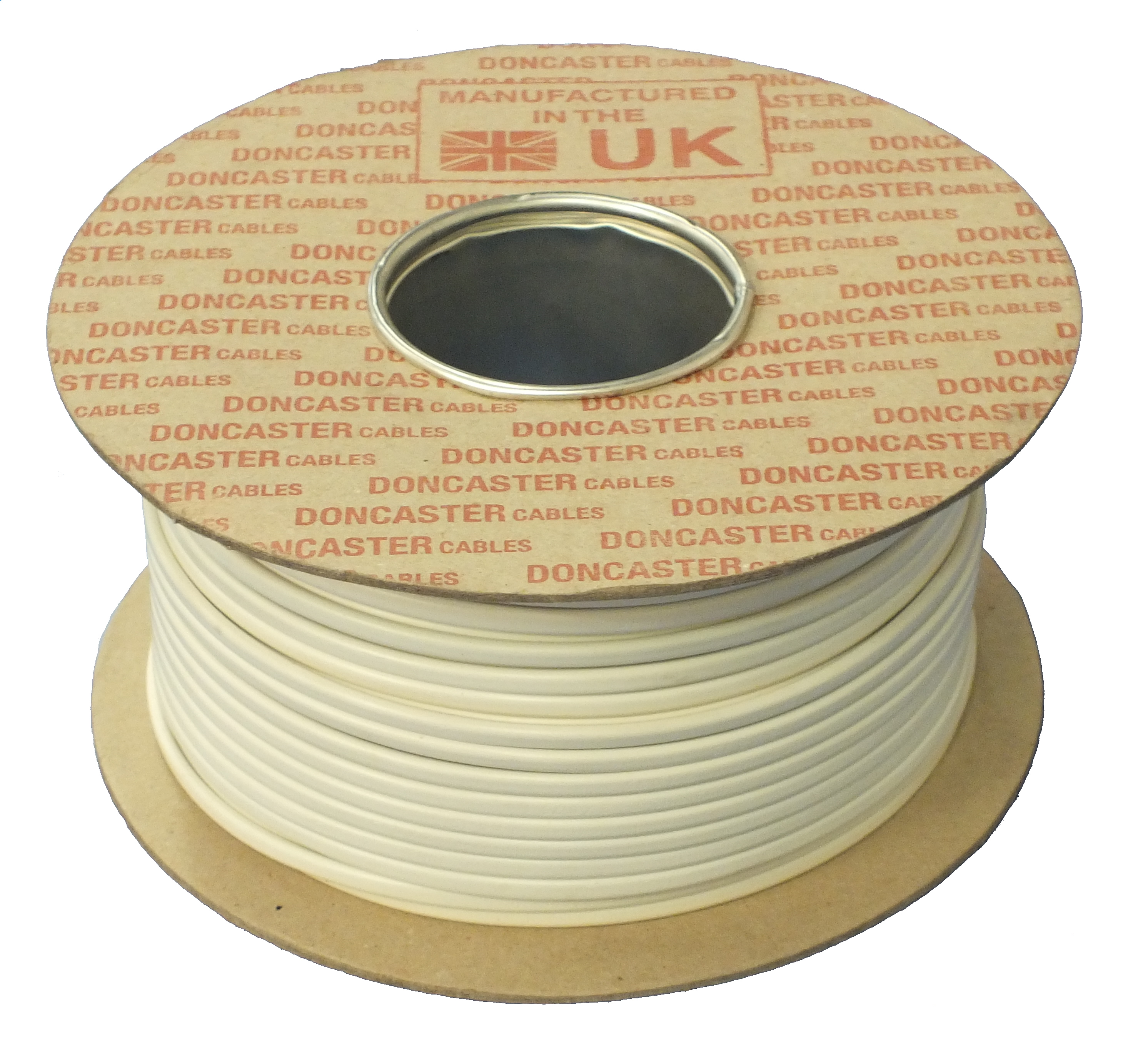

2192Y 0.75 WHITE 100 MTR RLS

Light duty flexible cords are used where the risk of mechanical damage and mechanical stresses is low, i.e. under external influences to be expected in the normal use of light, hand-held appliances and light portable equipment in domestic premises, offices and shops. Examples of appliances that use light duty flexible cords include domestic hair dryers and hair styling appliances, radio sets, table and standard lamps and small desktop machines.

SKU: 2192Y0.75W100
Reference: 10537384
Product Group: 2192Y_218-Y
Supplier: Doncaster Cables
Contact Sales

Certifications & Standards

Certification Logo Certification Logo Certification Logo

Quick Facts

SKU
2192Y0.75W100
Reference
10537384
Product Group
2192Y_218-Y
Specifications
31

Technical Specifications

Weight
36.84
Unit
1000
Number of conductors
2
Conductor Size
0.75
Construction
Flexible annealed copper conductor, PVC insulated, PVC sheathed light duty cords 300/300V parallel twin, circular twin, 3 core and 4 core
Standard
BS EN 50525-2-11:2011
Table / Clause
Clause 4.1, Table B.1
Conductor
Plain Annealed Copper Class 5 Flexible to BS EN 60228
Insulation
PVC Type TI2 to BS EN 50363-3
Sheathing
PVC Type TM2 to BS EN 50363-4-1
Voltage Rating
300/300V
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
70°C
Minimum Bending Radius
6 x diameter
Colour
White
Reel Dimensions (mm)
225x225x100
Core Colours
Blue and Brown
Current Ratings
For current ratings refer to table 4F3A of BS7671 IET Wiring Regulations.
Nominal Stranding of Conductor (mm)
24/0.2
Nominal Radial Thickness of Insulation (mm)
0.5
Nominal Radial Thickness of Sheath (mm)
0.6
Overall Diameter Lower Limit (mm)
3.2 x 5.2
Overall Diameter Upper Limit (mm)
3.8 x 6.3
Approximate Weight (kg/km)
37
Cable Types
LIGHT DUTY PVC FLEXIBLE
Meterage of each Component
100 Metres
Conductor Class to BS EN 60228
Class 5
Bullet1
Manufactured in the UK
Bullet2
Manufactured with 100% renewable energy
Bullet3
Uses materials and manufacturing techniques designed to make the electricians life easier
Bullet4
BASEC Approved
