6491X SINGLE CORE CONDUIT

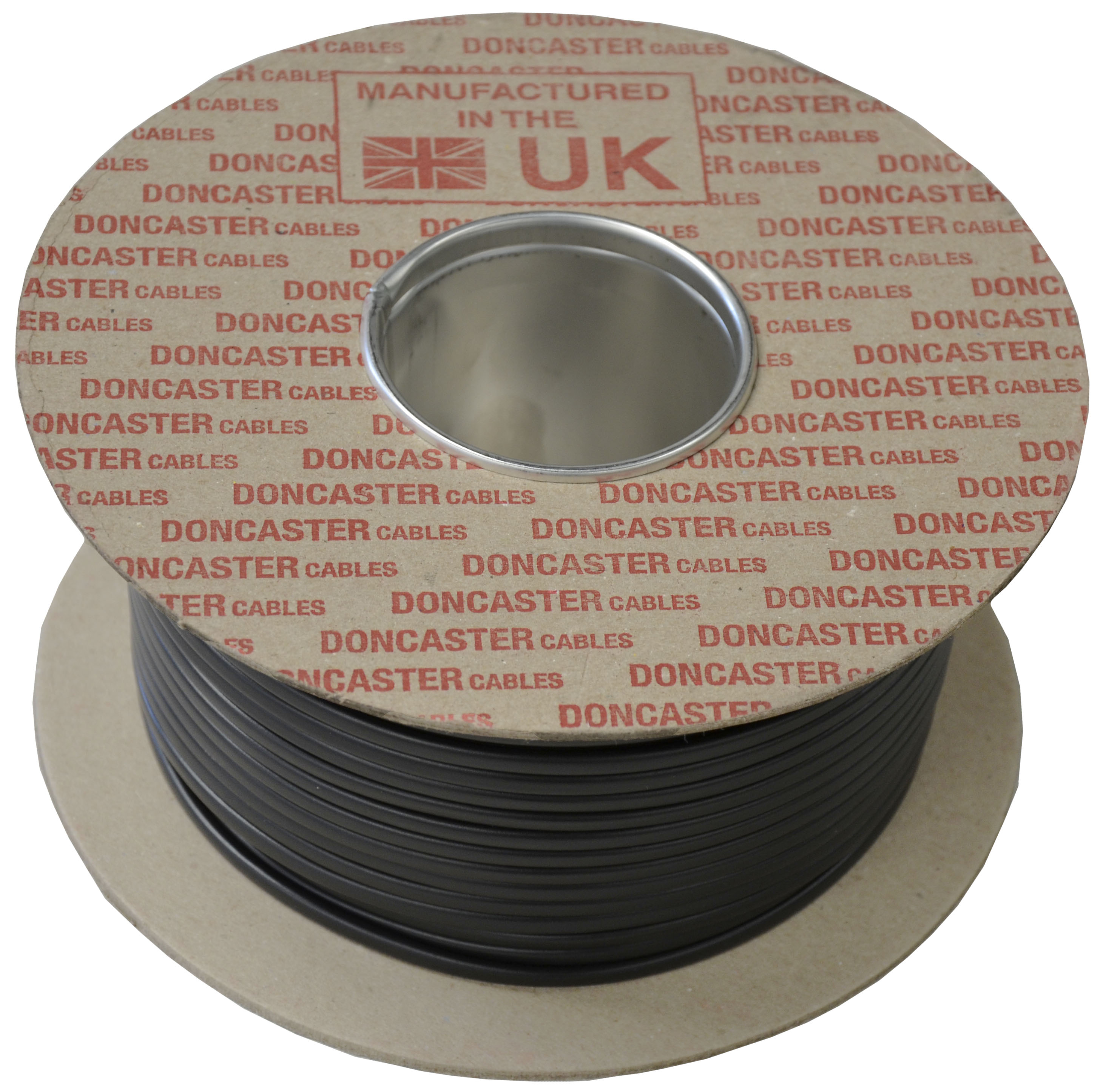

ST91X 1.5 BLACK 100 MTR RLS
These cables are intended for installation in surface mounted or embedded conduits, or similar closed systems. These cables are suitable for use in channels with cover. Suitable for fixed protected installation in or on light fi ttings and inside applications, switchgear and controlgear, for voltages up to 750V a.c or up to 450V to earth d.c.. When installed in an earthed metal enclosure, cables are suitable for voltages up to 1000V a.c or up to 750V to earth d.c.
SKU:
ST91X1.5B100
Reference:
10536279
Product Group:
6491X
Supplier:
Doncaster Cables
Certifications & Standards
Quick Facts
SKU
ST91X1.5B100
Reference
10536279
Product Group
6491X
Specifications
16
Technical Specifications
Weight
22.16
Unit
1000
Number of conductors
1
Conductor Size
1.5
Construction
Annealed Copper Conductor / PVC Insulated.
Standard
BS EN 50525-2-31:2011
Table / Clause
Table B1 / Clause 4.1
Conductor
Plain Annealed Copper Class 1 or 2 to BS EN 60228
Insulation
PVC Type TI1 to BS EN 50363-3
Voltage Rating
450/750V
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
70°C
Minimum Bending Radius
6 x diameter
Reel Dimensions (mm)
150x150x100
Core Colours
Green/Yellow, Blue, Brown, Black, or Grey
Current Ratings
For current ratings refer to table 4D1 of BS7671 IET Wiring Regulations.
